Frontal Efficiency
Bifacial Efficiency
Light-Induced Degradation
Low Power Temperature Coefficient
It's a tradition, but also a leader for the future
Ultra high efficiency | Stable and reliable | Extremely low attenuation | Excellent conductivity
Regular crystal structure with high conversion efficiency
N-type module with high bifacial ratio
Extremely low boron content
Low light-induced degradation
Superior anti-PID performance
Low power temperature coefficient for higher stability
Lower sealing loss
Ideal for high-efficiency modules

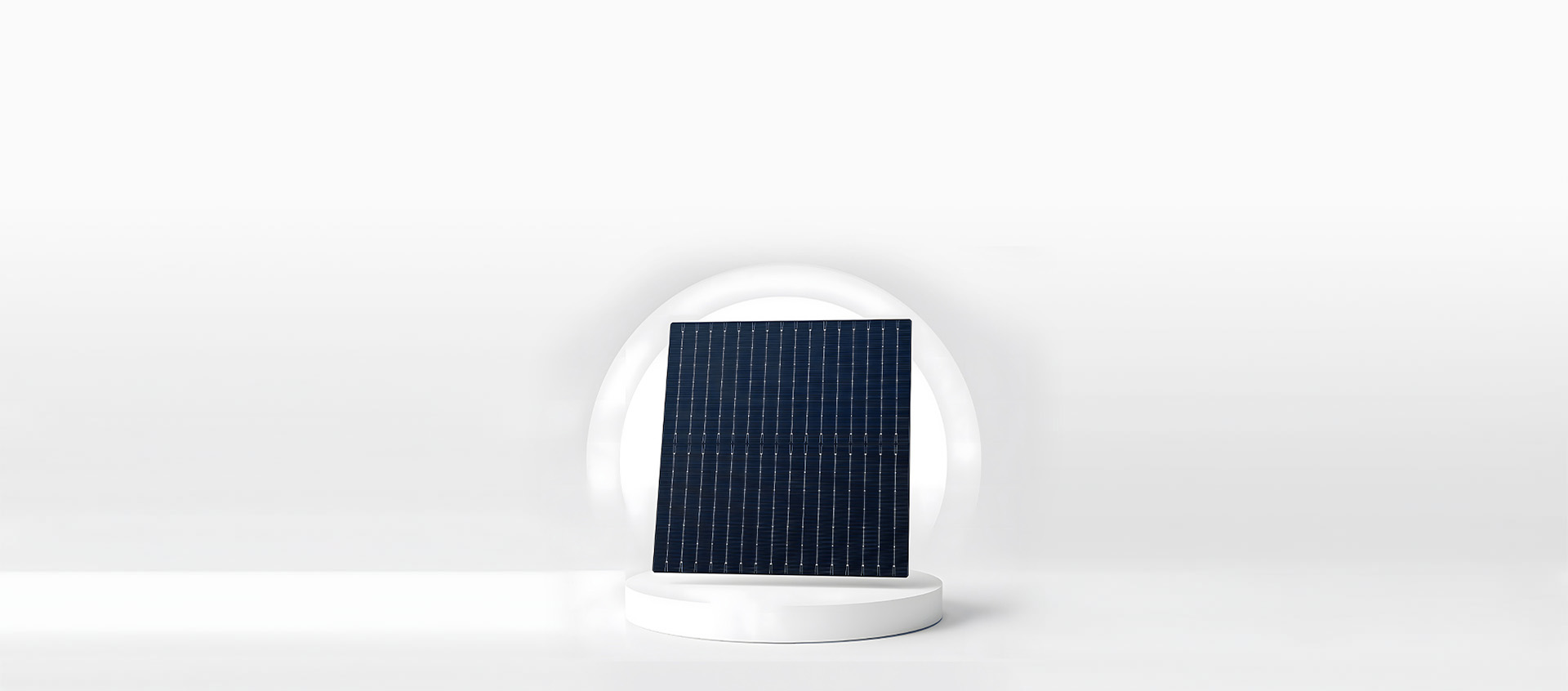

| Product Model | YSG-R210-16BB |
| Size Specification | 210mm×182mm±025mm,φ247±0.25mm |
| Cell Thickness | 130um±15pm |
| Front Side | Employs a 12-busbar, two-piece structure. Pad point brightness ranges from 0.8 mm to 1.3 mm. Fine and strong grid lines: 152 ± 10. Coated with silicon oxynitride. |
| Back Side | Back electrode width: 165 ± 0.2 mm. 180 conductive wires. Coated with silicon nitride |
| Current Temperature Coefficient | +0.048%/K |
| Voltage Temperature Coefficient | -0.28%K |
| Power Temperature Coefficient | -0.3496/K |
| Performance TiersEff(%) | Efficiency IntervalEfficiency | Power OutputPmpp(W) | Maximum Operating CurrentImpp(A) | Maximum Power VoltageUmpp(V) | Short Circuit CurrentIsc(A) | Open Circuit VoltageUoc(V) |
| 26.1 | 26.1 above | 9.97 | 15.976 | 0.6238 | 16.204 | 0.726 |
| 26.0 | 26.0-26.1 | 9.93 | 15.940 | 0.6229 | 16.168 | 0.725 |
| 25.9 | 25.9-26.0 | 9.89 | 15.903 | 0.6219 | 16.133 | 0.724 |
| 25.8 | 25.8-25.9 | 9.85 | 15.867 | 0.6209 | 16.097 | 0.723 |
| 25.7 | 25.7-25.8 | 9.81 | 15.831 | 0.6199 | 16.062 | 0.722 |
| 25.6 | 25.6-25.7 | 9.78 | 15.795 | 0.6189 | 16.026 | 0.721 |
| 25.5 | 25.5-25.6 | 9.74 | 15.758 | 0.6179 | 15.990 | 0.720 |
| 25.4 | 25.4-25.5 | 9.70 | 15.765 | 0.6152 | 15.999 | 0.717 |
| 25.3 | 25.3-25.4 | 9.66 | 15.750 | 0.6134 | 15.985 | 0.715 |
| 25.2 | 25.2-25.3 | 9.62 | 15.691 | 0.6133 | 15.926 | 0.715 |
| 25.1 | 25.1-25.2 | 9.58 | 15.653 | 0.6123 | 15.890 | 0.714 |
| 25.0 | 25.0-25.1 | 9.55 | 15.637 | 0.6105 | 15.875 | 0.712 |
| 24.9 | 24.9-25.0 | 9.51 | 15.622 | 0.6086 | 15.861 | 0.710 |
| 24.8 | 24.8-24.9 | 9.47 | 15.627 | 0.6060 | 15.869 | 0.707 |
| 24.7 | 24.7-24.8 | 9.43 | 15.588 | 0.6051 | 15.832 | 0.706 |
| 24.6 | 24.6-24.7 | 9.39 | 15.552 | 0.6040 | 15.794 | 0.705 |
