High Cell Conversion Efficiency
First-Year Degradation
Annual Degradation
Power Tolerance
It's a tradition, but also a leader for the future
Ultra high efficiency | Stable and reliable | Extremely low attenuation | Excellent conductivity
| Product Model | YSG-R 72HG |
| Cell Type | Monocrystalline N-Type |
| Module Weight | 34.6kg |

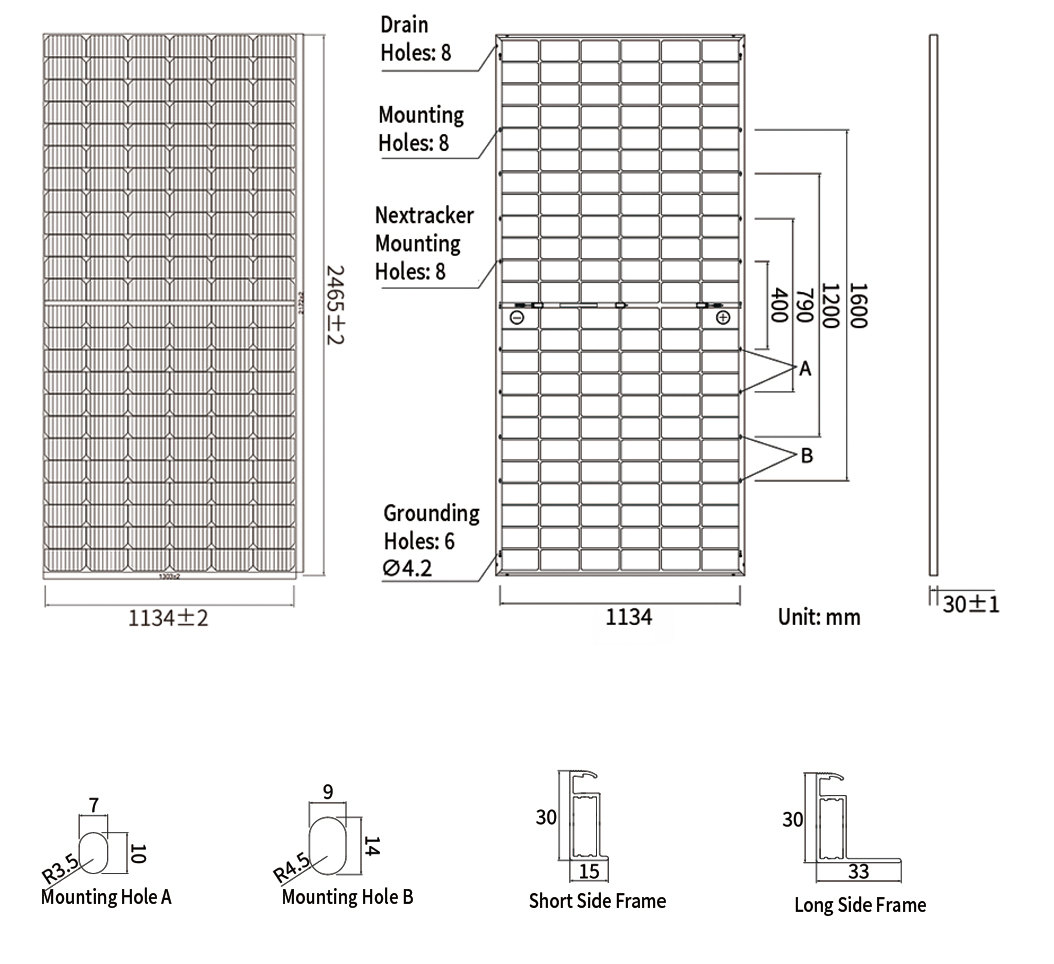

| Module Dimensions | 2465±2mm×1134±2mm×30±1mm |
| Cable Cross-Sectional Area | 4mm²(IEC), 12 AWG(UL) |
| Number of Cells | 144(6x24) |
| Junction Box | IP68 Rated, Equipped with 3 Diodes |
| Connector | QC 4.10-351/ MC4-EVO2A |
| Cable Length (Including Connectors) | 300mm(+)/400mm(-) |
| Front & Back Glass | 2.0mm/2.0mm |
| Packaging Information | 36 modules per pallet, 576 modules per 40HQ container |
